Rothoblaas in partnership with Canopy Products brings you the Holz Technic brand.

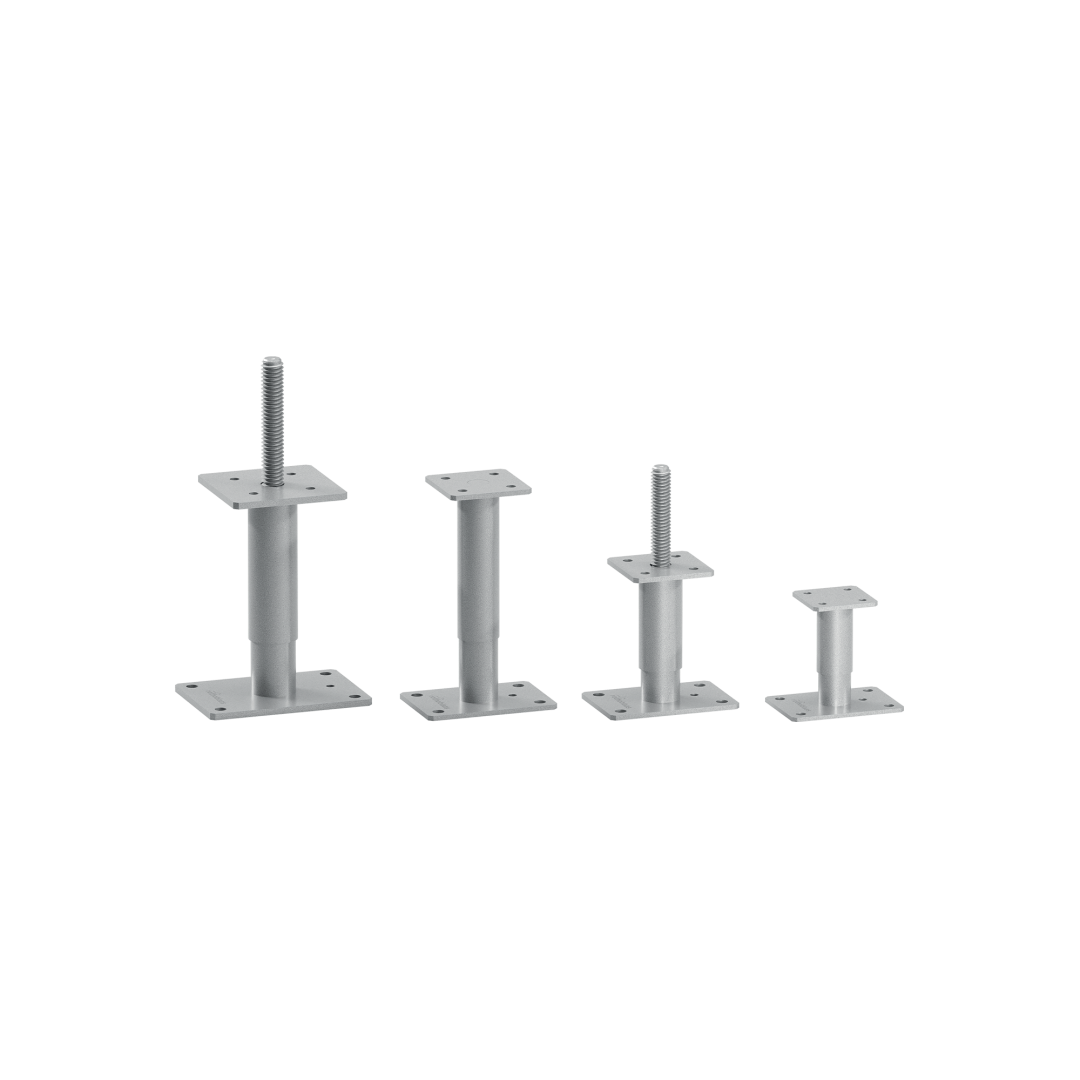

R10 - R20
ADJUSTABLE POST BASE
ADJUSTABLE AFTER INSTALLATION

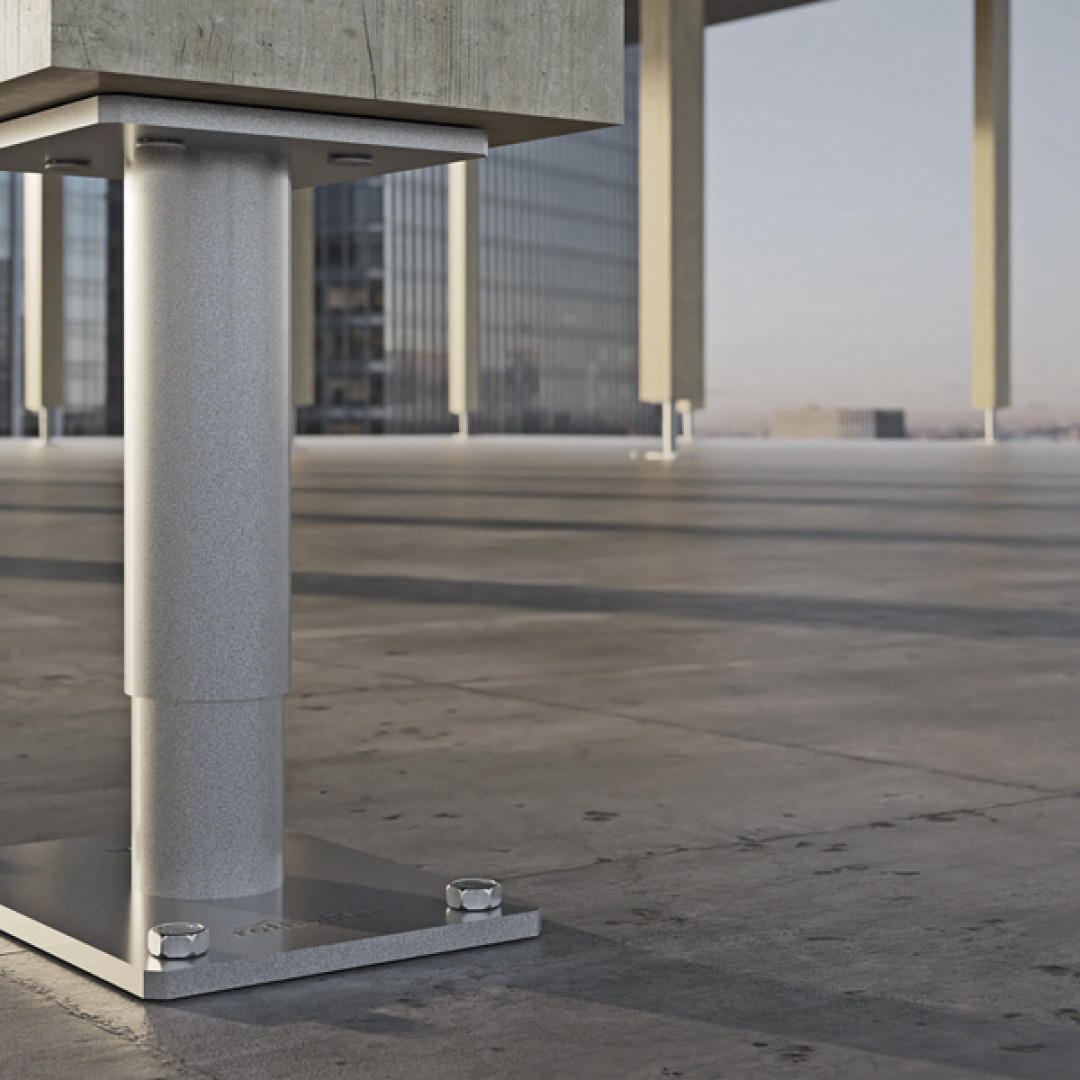

The height is adjustable even after installation, thanks to the double thread system concealed
by the sleeve, for optimum aesthetics.
RAISED
Outdistanced from the ground to avoid water splash and stagnation and guarantee high durability. Concealed fastening on the timber element.
DURABILITY
DAC COAT coating ensures high aesthetic performance and durability in outdoor contexts.
R10, R20 and R30 old design. Please see the Old PDF download for sizes.
R10 AND R20 have undergone a redesign and the product code will end with a M, L or XL Reductions in price for "old" stock have been reflected so get them whilst you can!
Please note that the R30120 postbase has now been withdrawn so once current levels have been used this disc type wont be available. Price has been reduced and disc 120 included.
If showing out of stock, please contact us as normally delivery can be made within 7 to 10 days.

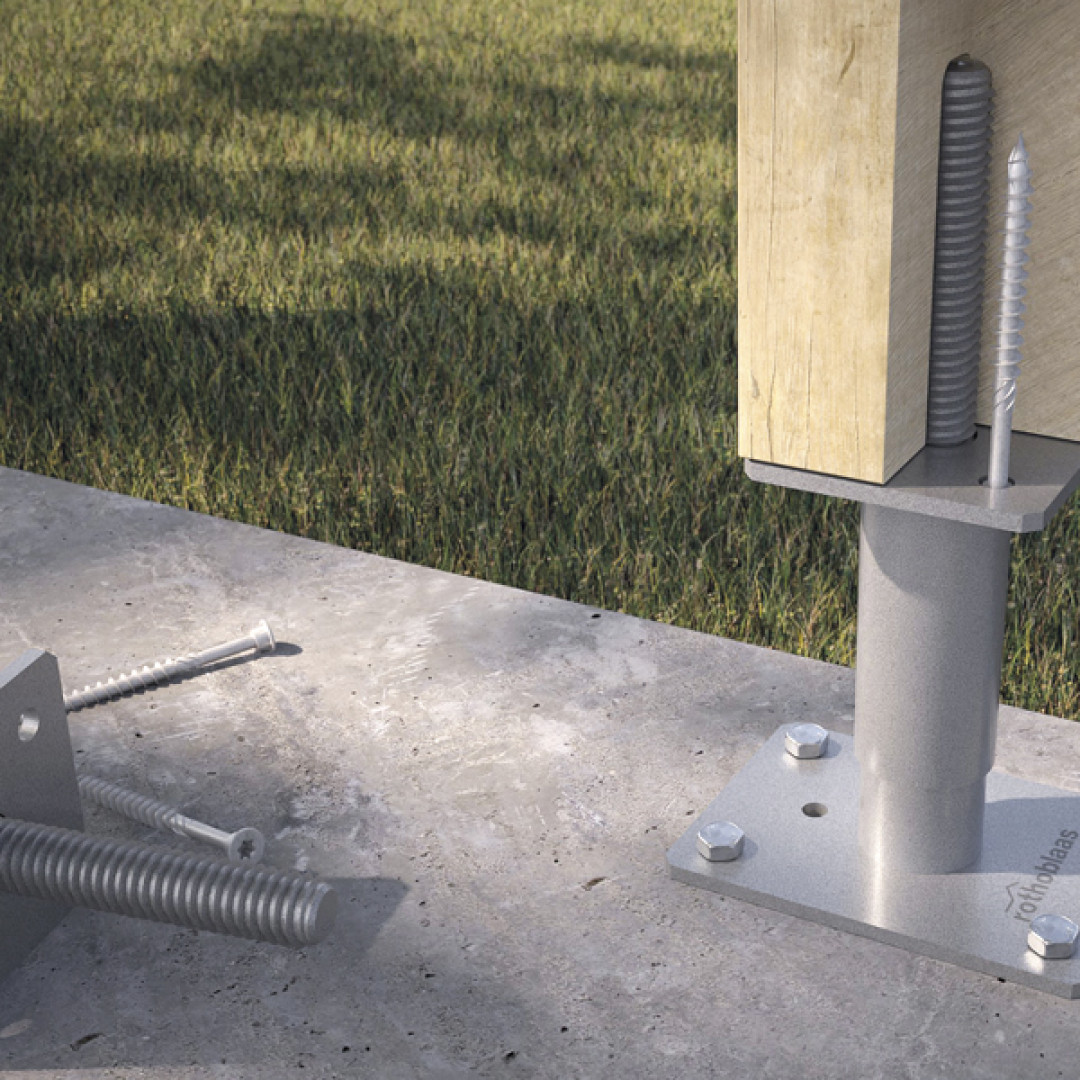

- The concealed fastening of R10 and R20 to the timber element is achieved through the use of screws and a top plate. It is fixed to the ground by means of anchors on a lower plate. The lower plate has an auxiliary hole to allow the screws to be fastened to timber by means of long bits. see our fixing sections and specialist screws, contact us to order singles (only available when ordering a HT product).
- In terms of static strength, the large models ensure high compressive strengths; to ensure high tensile strengths as well, VGS EVO full thread screws can be used. See product spec download.
- Visual aesthetics and functionality are combined in Rothoblaas/Holz adjustable post bases, which have been designed to perfectly complement any architectural context. The superior finish, combined with the robustness of the material, provides an attractive appearance that is maintained over time, resisting atmospheric agents and corrosion. Easy and quick installation, thanks to the presence of holes that facilitate alignment during assembly.
- The height adjustment capability of Rothoblaas/Holz R10 and R20 post bases allows precise adaptation to the specific needs of each project, simplifying installation even on uneven surfaces. Carbon steel with Dac Coat coating plating effectively protects against degradation, extending the adjustable post base's longevity in adverse weather conditions.
- Suitable for outdoor use in service classes 1, 2 and 3.
Price is ex vat and per post base.
Bulk orders please contact us as discounts may apply and the most economic delivery charges can be agreed.
Due to variances in Timber finishes some adjustment to the post/column might be required on site with some of the bases.
